- Ram 3500/4500/5500 Rear mud flaps, 2010-Current, dually
Total cart price will be:
0.0Ram 3500/4500/5500 Rear mud flaps, 2010-Current, dually

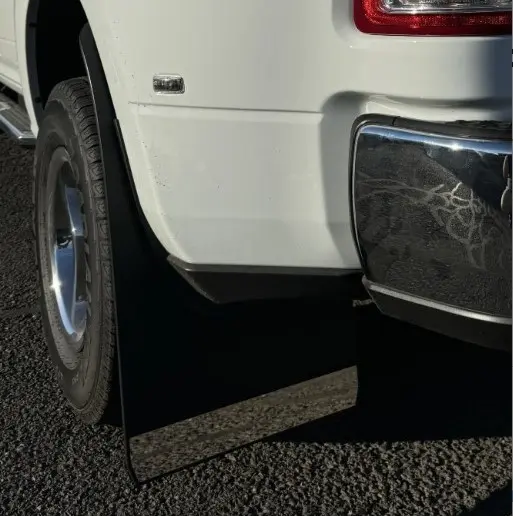

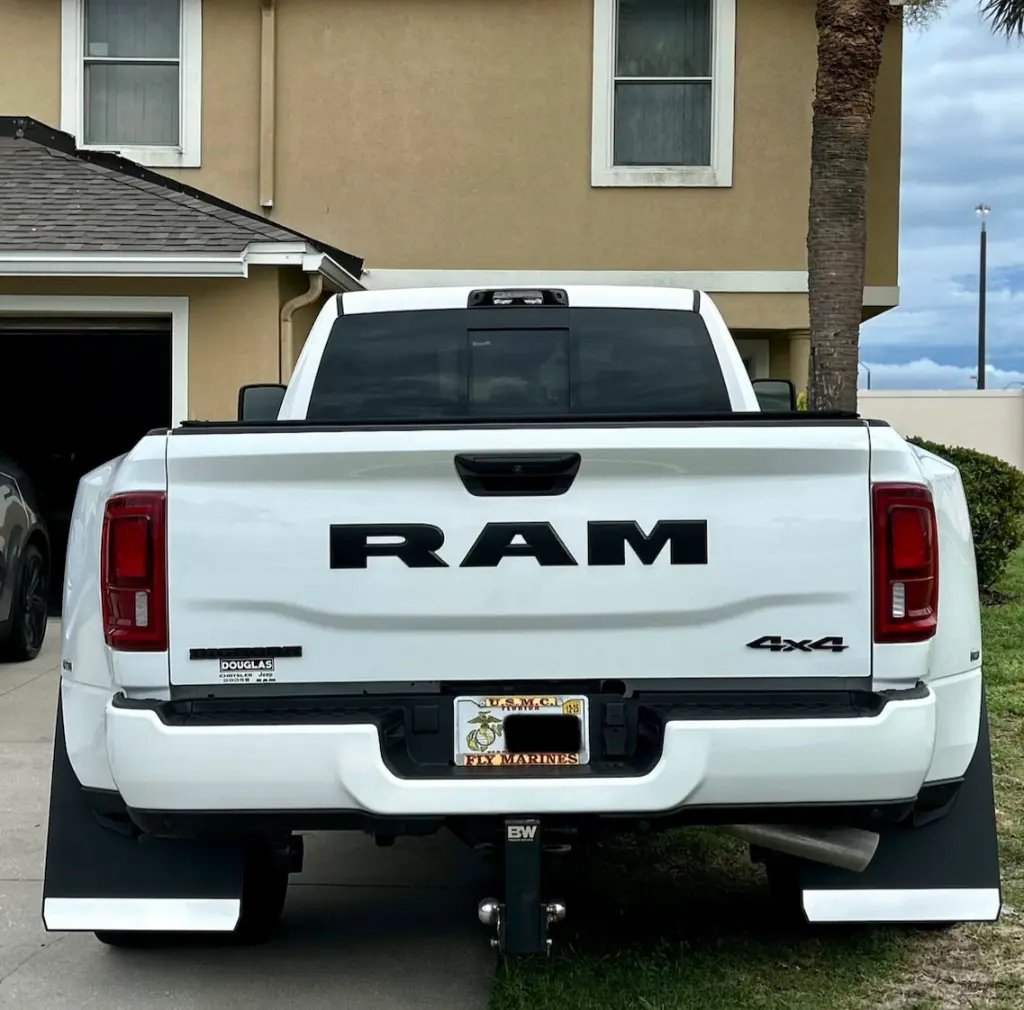

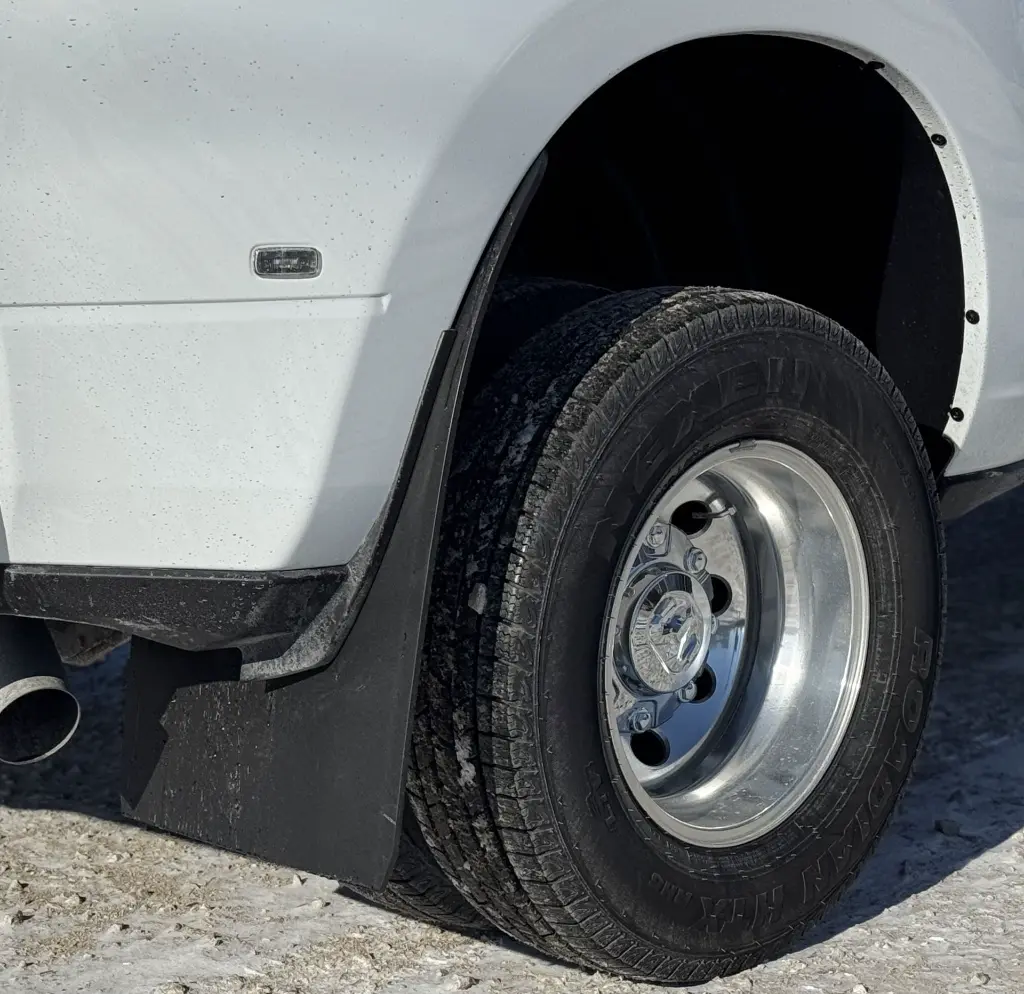

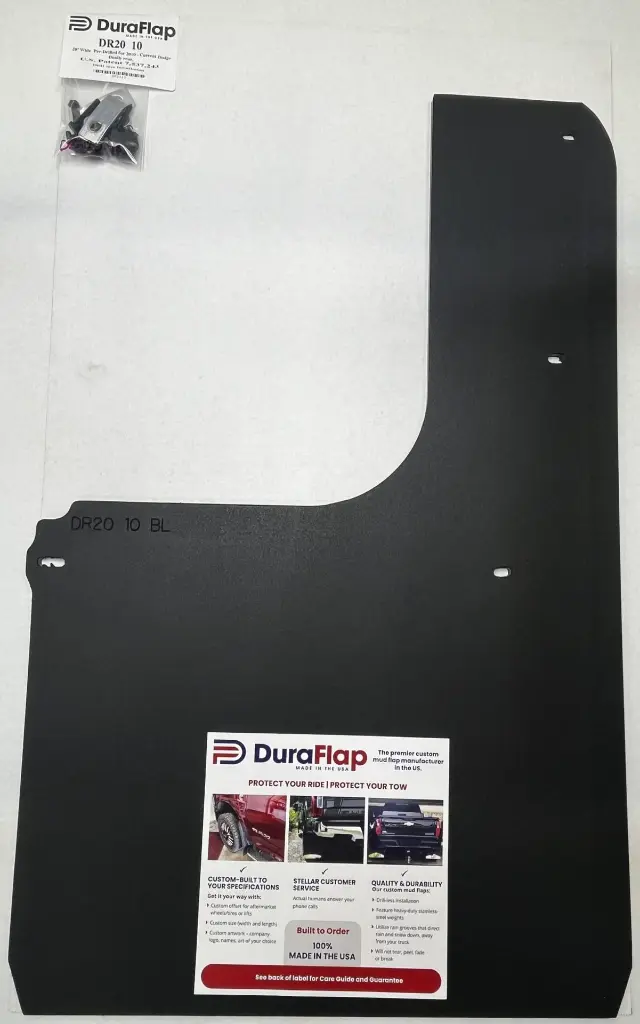

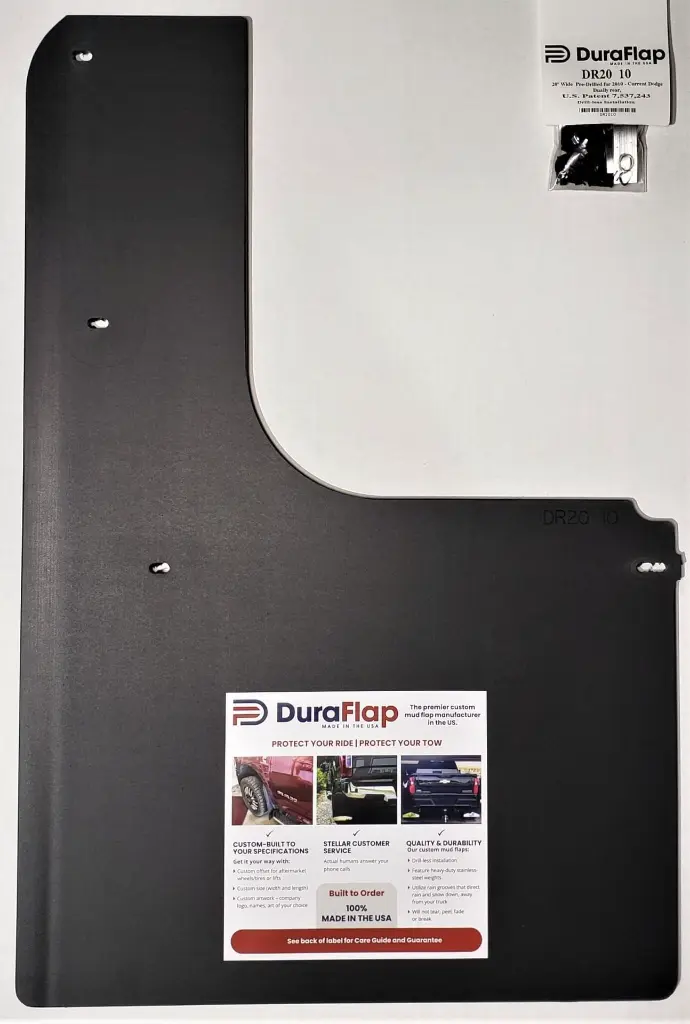

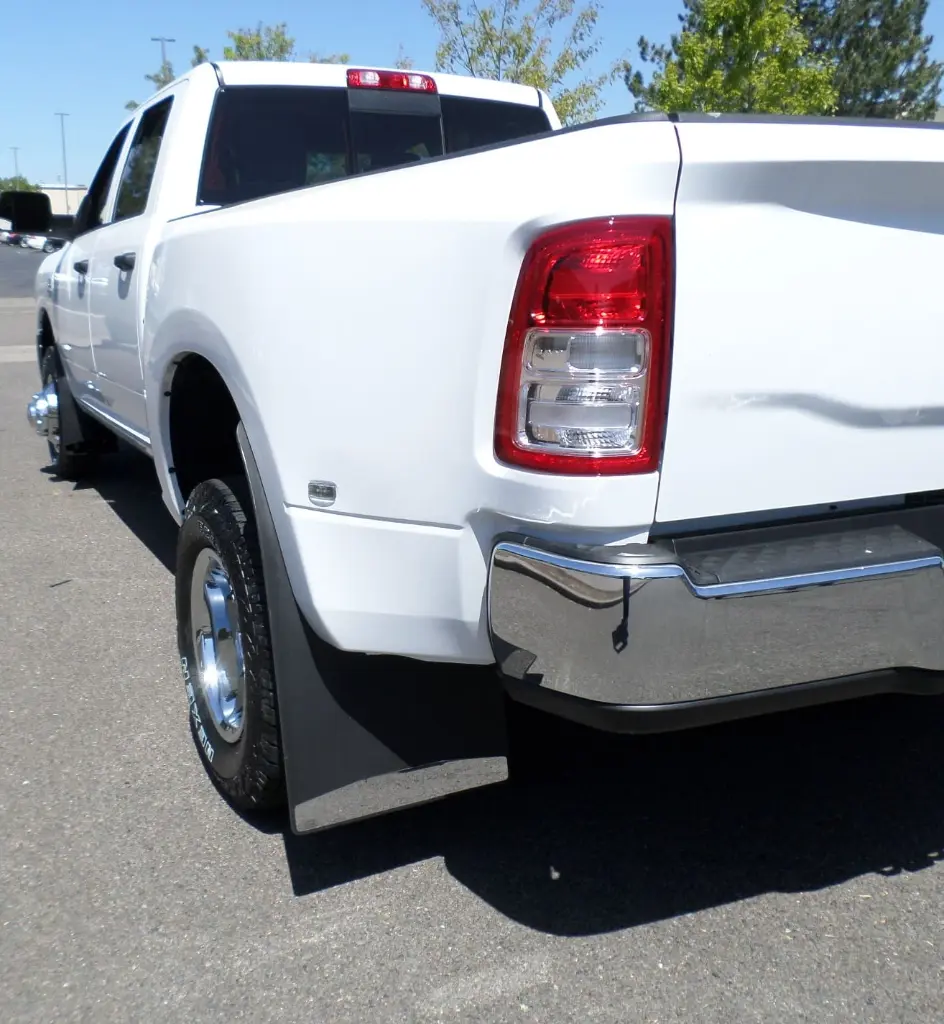

https://shop.duraflap.com/shop/008968-ram-3500-4500-5500-rear-mud-flaps-2010-current-dually-22 https://shop.duraflap.com/web/image/product.template/22/image_1920?unique=872d4a9These Ram dually mud flaps are a drill-less installation. They are approximately 20 inches wide by 3/8 inch thick and come in two different lengths. Standard length will hang 12″ below the rear fender, Long length will hang 15″ below the rear fender. It is best to measure your truck to figure out what length will work for you. Measure from the ground up to the painted surface of the rear fender and minus off the lengths (12, 15,) to determine how far off the ground the flaps will hang. We recommend to be at least 7″ off the ground to keep from backing up against curbs and parking guards.
Application: REAR of all Ram Dually trucks 2010 thru Current.
Mounting: Duraflap mounting hardware is made of stainless steel where available. Other mounting products are made of anti-corrosive and rust resistant materials. Our drill-less mud flaps are custom designed to utilize existing factory holes and other mounting points available on your truck. Instructions included.
Hardware: All required hardware and brackets are supplied with these mud flaps.
Serviceability: Maximum protection available for dually trucks. This Mudflap is pre-drilled and requires no drilling of additional holes in your truck. Allows for easy & precise alignment.
We suggest ordering the dually mud flaps with the stainless weights across the bottom. The weights will help to prevent these wide mud flaps from taking a curl over years of highway driving.
You will also want to make sure your flaps are at least 2 to 3″ away from your exhaust pipe. If not, it will have to be moved. We do offer a stand off bracket to drill into the exhaust pipe that keeps the mud flap from touching it. Let us know when ordering if you need this.
Product Fitment Not Available.
| Year | Make | Model | Submodel | Wheel Configuration | Vehicle Platform |
|---|---|---|---|---|---|
| 2010 | Ram | 3500 | Dual Rear Wheel | ||
| 2011 | Ram | 3500 | Dual Rear Wheel | ||
| 2012 | Ram | 3500 | Dual Rear Wheel | ||
| 2013 | Ram | 3500 | Dual Rear Wheel | ||
| 2014 | Ram | 3500 | Dual Rear Wheel | ||
| 2015 | Ram | 3500 | Dual Rear Wheel | ||
| 2016 | Ram | 3500 | Dual Rear Wheel | ||
| 2017 | Ram | 3500 | Dual Rear Wheel | ||
| 2018 | Ram | 3500 | Dual Rear Wheel | ||
| 2019 | Ram | 3500 | Dual Rear Wheel | ||
| 2020 | Ram | 3500 | Dual Rear Wheel | ||
| 2021 | Ram | 3500 | Dual Rear Wheel | ||
| 2022 | Ram | 3500 | Dual Rear Wheel | ||
| 2023 | Ram | 3500 | Dual Rear Wheel | ||
| 2024 | Ram | 3500 | Dual Rear Wheel | ||
| 2025 | Ram | 3500 | Dual Rear Wheel | ||
| 2026 | Ram | 3500 | Dual Rear Wheel | ||
| 2027 | Ram | 3500 | Dual Rear Wheel | ||
| 2028 | Ram | 3500 | Dual Rear Wheel | ||
| 2010 | Ram | 4500 | Dual Rear Wheel | ||
| 2011 | Ram | 4500 | Dual Rear Wheel | ||
| 2012 | Ram | 4500 | Dual Rear Wheel | ||
| 2013 | Ram | 4500 | Dual Rear Wheel | ||
| 2014 | Ram | 4500 | Dual Rear Wheel | ||
| 2015 | Ram | 4500 | Dual Rear Wheel | ||
| 2016 | Ram | 4500 | Dual Rear Wheel | ||
| 2017 | Ram | 4500 | Dual Rear Wheel | ||
| 2018 | Ram | 4500 | Dual Rear Wheel | ||
| 2019 | Ram | 4500 | Dual Rear Wheel | ||
| 2020 | Ram | 4500 | Dual Rear Wheel | ||
| 2021 | Ram | 4500 | Dual Rear Wheel | ||
| 2022 | Ram | 4500 | Dual Rear Wheel | ||
| 2023 | Ram | 4500 | Dual Rear Wheel | ||
| 2024 | Ram | 4500 | Dual Rear Wheel | ||
| 2025 | Ram | 4500 | Dual Rear Wheel | ||
| 2026 | Ram | 4500 | Dual Rear Wheel | ||
| 2027 | Ram | 4500 | Dual Rear Wheel | ||
| 2028 | Ram | 4500 | Dual Rear Wheel | ||
| 2010 | Ram | 5500 | Dual Rear Wheel | ||
| 2011 | Ram | 5500 | Dual Rear Wheel | ||
| 2012 | Ram | 5500 | Dual Rear Wheel | ||
| 2013 | Ram | 5500 | Dual Rear Wheel | ||
| 2014 | Ram | 5500 | Dual Rear Wheel | ||
| 2015 | Ram | 5500 | Dual Rear Wheel | ||
| 2016 | Ram | 5500 | Dual Rear Wheel | ||
| 2017 | Ram | 5500 | Dual Rear Wheel | ||
| 2018 | Ram | 5500 | Dual Rear Wheel | ||
| 2019 | Ram | 5500 | Dual Rear Wheel | ||
| 2020 | Ram | 5500 | Dual Rear Wheel | ||
| 2021 | Ram | 5500 | Dual Rear Wheel | ||
| 2022 | Ram | 5500 | Dual Rear Wheel | ||
| 2023 | Ram | 5500 | Dual Rear Wheel | ||
| 2024 | Ram | 5500 | Dual Rear Wheel | ||
| 2025 | Ram | 5500 | Dual Rear Wheel | ||
| 2026 | Ram | 5500 | Dual Rear Wheel | ||
| 2027 | Ram | 5500 | Dual Rear Wheel | ||
| 2028 | Ram | 5500 | Dual Rear Wheel |
| Component | Quantity | Unit of Measure | Price | Total | If Purchased Separately | 0 |
Specifications
| Style | Classic, BlackLine |
| Length below fender | Long-15", Standard-12" |
| Weight Option | No Weights, Standard Weights, Standard Custom Weights, Custom Designed Weights |
| Make / Location | Dodge Rear |
| Mud Flap Width | 20" Dually Drill-less |
| Year | 10 |
